H01N2-D Welding Cable
Special mobile cables for various electric welding machines and equipment.
Share to
- 产品描述
-
● Application
Special mobile cables for various electric welding machines and equipment.
● Standard
EN 50525-2-81; IEC60245
● Technology certification
CE; ROHS; CCC
● Construction parameters
1. Conductor: Plain copper stranded wire or tinned copper stranded wire, conforming to IEC60228 standard.
2. One layer sheath: EM5 type material, conforming to EN 50363-2-2.
3. Two layers sheath: an outer layer of material type EM 5 to EN 50363-2-2 and an inner layer which is either of type EM 5 or of material type EI 7 to EN 50363-1.● General data
H01N2-D
Nominal
cross-sectional
area of conductor
(mm²)Maximum
diameter of wires
in conductor
(mm)Thickness
of covering Specified
value
(mm)Mean overall
diameterMaximum conductor
resistance at 20℃Lower limit
(mm)Upper limit
(mm)Tinned wires
(Ω/km)Untinned wires
(Ω/km)10 0.21 2 7.7 9.7 1.95 1.91 16 0.21 2 8.8 11 1.24 1.21 25 0.21 2 10.1 12.7 0.795 0.78 35 0.21 2 11.4 14.2 0.565 0.554 50 0.21 2.2 13.2 16.5 0.393 0.386 70 0.21 2.4 15.3 19.2 0.277 0.272 95 0.21 2.6 17.1 21.4 0.21 0.206 120 0.51 2.8 19.2 24 0.164 0.161 150 0.51 3 21.1 26.4 0.132 0.129 185 0.51 3.2 23.1 28.9 0.108 0.106 240 0.51 3.4 25.8 32.1 0.0817 0.0801 H01N2-E
Nominal
cross-sectional
area of conductor
(mm²)Maximum
diameter of wires
in conductor
(mm)Thickness
of covering Specified
value
(mm)Mean overall
diameterMaximum conductor
resistance at 20℃Lower limit
(mm)Upper limit
(mm)Tinned wires
(Ω/km)Untinned wires
(Ω/km)10 0.16 1.2 6.2 7.8 1.95 1.91 16 0.16 1.2 7.3 9.1 1.24 1.21 25 0.16 1.2 8.6 10.8 0.795 0.78 35 0.16 1.2 9.8 12.3 0.565 0.554 50 0.16 1.5 11.9 14.8 0.393 0.386 70 0.16 1.5 13.6 17 0.277 0.272 95 0.16 1.8 15.6 19.5 0.21 0.206 120 0.21 1.8 17.2 21.6 0.164 0.161 150 0.21 1.8 18.8 23.5 0.132 0.129 185 0.21 1.8 20.4 25.5 0.108 0.106 240 0.21 2.0 23.0 28 0.0817 0.0801 ● Cable construction

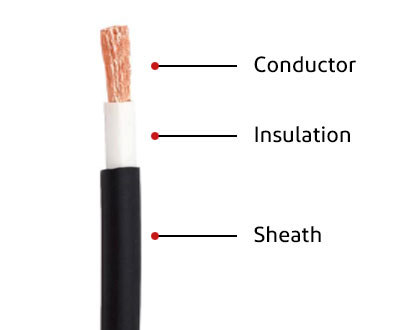

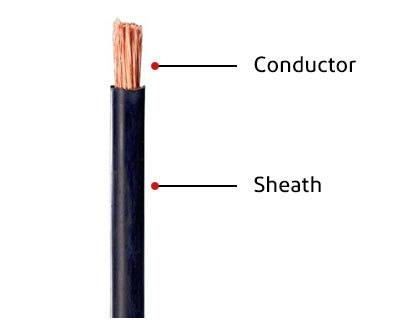

Single insulated cable Double insulated cable
