AL/XLPE/STA/PVC Three core medium voltage cable
Share to
- 产品描述
-
● Construction
Conductor：Class 2 stranded compacted copper conductor
Conductor Screen：Semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation：XLPE (Cross-Linked Polyethylene)
Insulation Screen：Semi-conductive XLPE (Cross-Linked Polyethylene)
Metallic Screen：Concentric copper wires and copper tape
Separator：Binding tape
Inner Sheath：PVC (Polyvinyl Chloride)
Armour：AWA (Aluminium Wire) SWA (Galvanised steel wire) STA
Sheath：PVC (Polyvinyl Chloride)
● Application
This product is suitable for medium voltage power transmission and distribution. XLPE power cable has excellent electrical properties and good heat resistance performance. It also has the good characters as light weight, simple structure, easy to use and good chemical resistance etc.
● Models & Names
Model Names Copper core Aluminium
coreYJV YJLV Cu/XLPE/ PVC
Al/XLPE/ PVCYJY YJLV Cu/XLPE/ PE
Al/XLPE/ PEYJV22 YJLV22 Cu/XLPE/PVC/STA/ PVC
Al/XLPE/ PVC/ STA/PVCYJV23 YJLV23 Cu/XLPE/PVC/STA/ PE
Al/XLPE/ PVC/ STA/PEYJV32 YJLV32 Cu/XLPE/PVC/SWA/ PVC
Al/XLPE/ PVC/ SWA/PVCYJV33 YJLV33 Cu/XLPE/PVC/SWA/ PE
Al/XLPE/ PVC/ SWA/PEYJV62 YJLV62 Cu/XLPE/PVC/non-magnetic STA/ PVC
Al/XLPE/PVC/non-magnetic STA/ PVCYJV72 YJLV72 Cu/XLPE/PVC/non-magnetic SWA/ PVC
Al/XLPE/PVC/non-magnetic SWA/ PVCYJV63 YJLV63 Cu/XLPE/PVC/non-magnetic STA/ PE
Al/XLPE/PVC/non-magnetic STA/ PEYJV73 YJLV73 Cu/XLPE/PVC/non-magnetic SWA/ PE
Al/XLPE/PVC/non-magnetic SWA/ PENote: FR type can be produced according to buyer’s request.
● Specifications
Model No. Of cores Rated Voltage（kV） 3.6/6 6/6
6/108.7/10
8.7/1512/15
12/2018/20
18/3021/35 26/35 Nominal cross section (mm2) YJV YJLV 1 25~800 25~800 25~1600 35~1600 50~1600 50~1600 50~1600 YJY YJLY 25~800 25~800 25~1600 35~1600 50~1600 50~1600 50~1600 YJV YJLV 3 25~630 25~630 25~630 35~630 50~630 50~630 50~630 YJY YJLY 25~630 25~630 25~630 35~630 50~630 50~630 50~630 YJV
22YJLV22 25~630 25~630 25~630 35~500 50~500 50~400 50~400 YJV
23YJLV23 25~630 25~630 25~630 35~500 50~500 50~400 50~400 YJV
32YJLV32 25~630 25~630 25~400 35~400 50~240 50~185 50~185 YJV
33YJLV33 25~630 25~630 25~400 35~400 50~240 50~185 50~185 ● Cable Materials
Conductor: Cu/ Al/ CCA/ Aluminium alloy
Insulation: XLPE
Inner sheath: PVC/ PE
Armoured layer (optional): STA/ SWA/ AWA
Outer sheath: PVC/PE

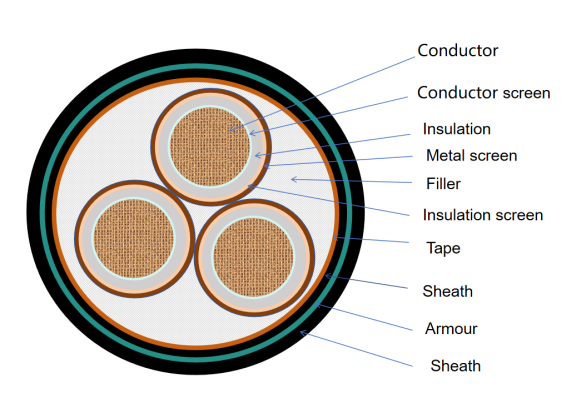

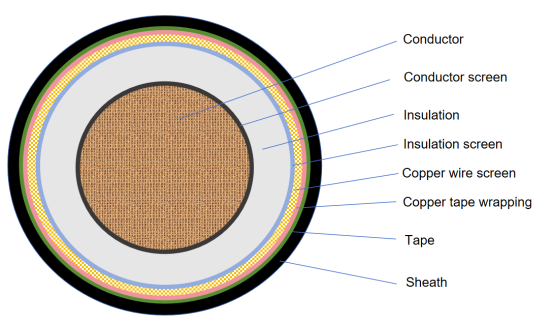

● Cable construction
