VFD Cable
2025-07-25
General Introduction
3+3 VFD cable is designed and manufactured in an integrated manner based on the matching structural characteristics of the inverter and the motor as well as technical requirements such as electromagnetic compatibility (EMC), distributed capacitance, and wave impedance. It conforms to the development requirements of modern inverter technology and abandons the traditional construction of general power cable. It adopts a new symmetrical (3+3) shielding structure. It is a product with good frequency conversion compatibility and is used for power transmission between the frequency converter and the motor.
Models & Names
Models | Names |
BPYJVP | Copper conductor XLPE insulation PVC sheath copper wire woven screen VFD cable |
BPYJVP1 | Copper conductor XLPE insulation PVC sheath copper wire winded screen VFD cable |
BPYJVP2 | Copper conductor XLPE insulation PVC sheath copper tape wrapped screen VFD cable |
BPYJVP1-2 | Copper conductor XLPE insulation PVC sheath copper winded copper tape wrapped screen VFD cable |
BPYJVP1-3 | Copper conductor XLPE insulation PVC sheath copper winded Al/plastic compound tape screen VFD cable |
BPYJVP2/22 | Copper conductor XLPE insulation PVC sheath copper tape wrapped screen steel tape armoured VFD cable |
WDZ-BPYJYP | Copper conductor XLPE insulation copper wire woven screen LSZH flame-retardant VFD cable |
WDZ-BPYJYP1 | Copper conductor XLPE insulation copper wire winded screen LSZH flame-retardant VFD cable |
WDZ-BPYJYP2 | Copper conductor XLPE insulation copper tape wrapped screen LSZH flame-retardant VFD cable |
WDZ-BPYJYP1-2 | Copper conductor XLPE insulation copper winded copper tape wrapped screen LSZH flame-retardant VFD cable |
WDZ-BPYJYP1-3 | Copper conductor XLPE insulation copper winded Al/plastic compound tape screen LSZH flame-retardant VFD cable |
WDZ-BPYJYP2/23 | Copper conductor XLPE insulation copper tape wrapped screen steel tape armoured LSZH flame-retardant VFD cable |

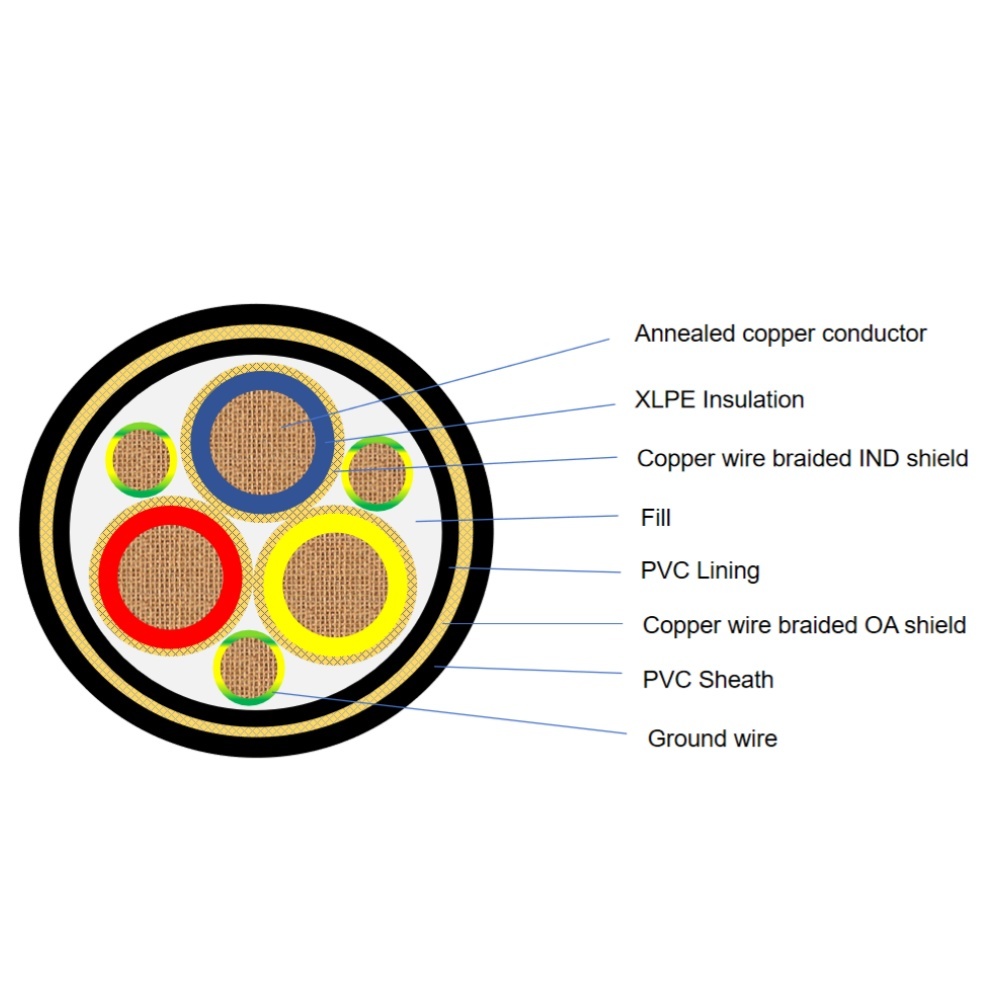

Cable construction
